The Next Generation in Waste Water Treatment Technology
closed loop pressure wash wastewater recycle system designed for marinas and boatyards
model CL-300-BF
The Next Generation in Waste Water Treatment Technology is always looking for the Very Best Treatment Technology. This design used the same
proven technology with the added features of a plastic mounting platform, and the addition of Ultraviolet (UV) technology developed for our system with the help of Radiant UV
Industrial. This UV system uses UV Sterilization and Clarifier to kill algae and Pathogens in the recycled water. The addition of this technology is incorporated into the recycle
line from the media filter to the treatment/storage tank controlled by the recycle system electrical controls. When the recycle system is running the UV lamp is on thus water is
continuously exposed to the UV lamp as the water is circulated through media filter and treatment/storage tank.
UV lamp
Media
filter
pump
Bag filter
tank
ABOVE GROUND
SEPARATOR
Components of this UV system are
Quartz glass tube, low pressure UV
lamp, and ballast transformer. The
selection of these components are
base on lamp length, physical
design, condition of the water,
water flow rate and lamp
positioning inside UV body.

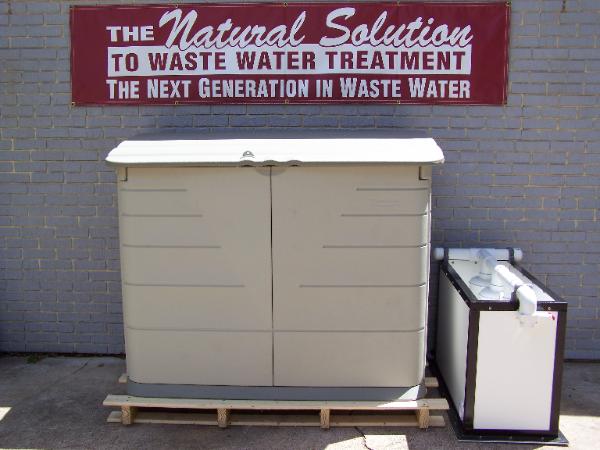

CL-300-BFO PORTABLE

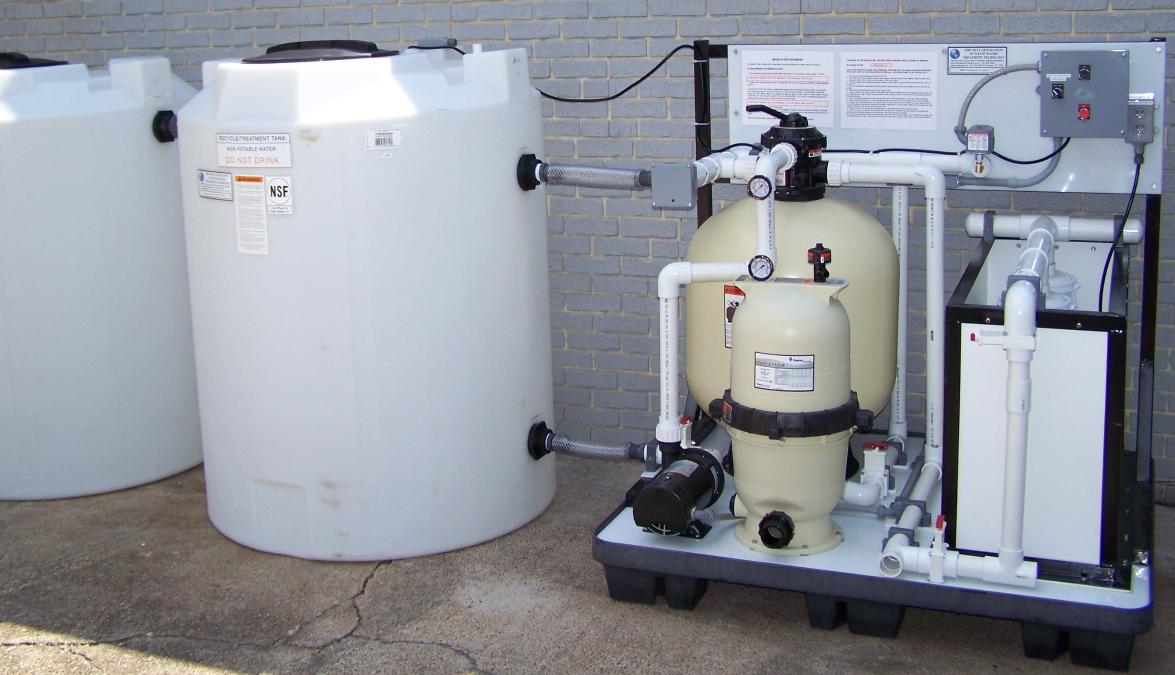

CLOSED LOOP RECYCLE SYSTEM USED OUTSIDE AND THEN STORED FOR WINTER, RECYCLE SYSTEM FILTER UNIT IS MOUNTED ON PLASTIC PALLET AND THE
TREATMENT STORAGE AND SEPARATOR TANKS ALSO MOUNTED ON PLASTIC PALLETS, CONNECTION ARE MADE WITH HOSES FOR EASY  STORAGE.
CL-300-BFO designed for outside installation using automatic pH control to neutralize acid cleaners.
pH controller
chemical feed pump
ABOVE GROUND
SEPARATOR
TREATMENT/RECYCLE TANK
A
B
C
D
E
F
G
(A) Primary media filter incorporates a proprietary media that is permanent and never needs changing. This media is modified to have an attraction for heavy metals like Copper.
(B) Final filter before going to pressure washer 5 micron filter.

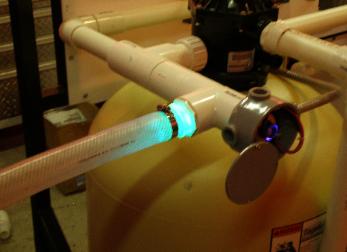

(C) Newly added UV lamp system to destroy ALL Pathogens in the recycles water. When tested water samples removed from the recycle system at a marina high amounts of total
coliform, E coli, and Fecal Coliform were detected. After the installation of the UV lamp all samples were below the detectably levels, this UV lamp also destroys algae. Water sample was
left standing for 2 weeks and no algae was observed.
(D) Recycle pump, this pump recycles water through the media filter continuously, supplies the air injector and provides pressure to the pressure washer.
(E) Outlet from final filter to pressure washer.
(F) Back flush line connection.
(G) Cascade bag filter tank, the bag filters collects solids from the bottom of the above ground separator.

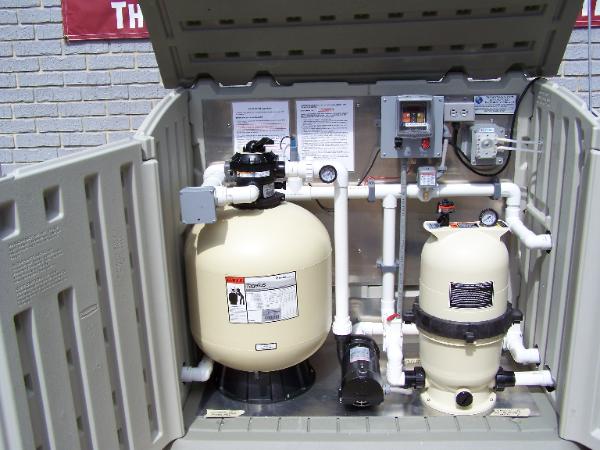

CL-300-BFO FILTER UNIT
TREATMENT/ STORAGE TANK
ABOVE GROUND SEPARATOR TANK
